Dometic DC Kit DSP-T12 For Dometic Air Conditioners
The Dometic DSP-T12 DC Kit is a kit to allow your Dometic Air Conditioning to operate on 12v via an inverter, even whilst your campervan or motorhome is in motion.

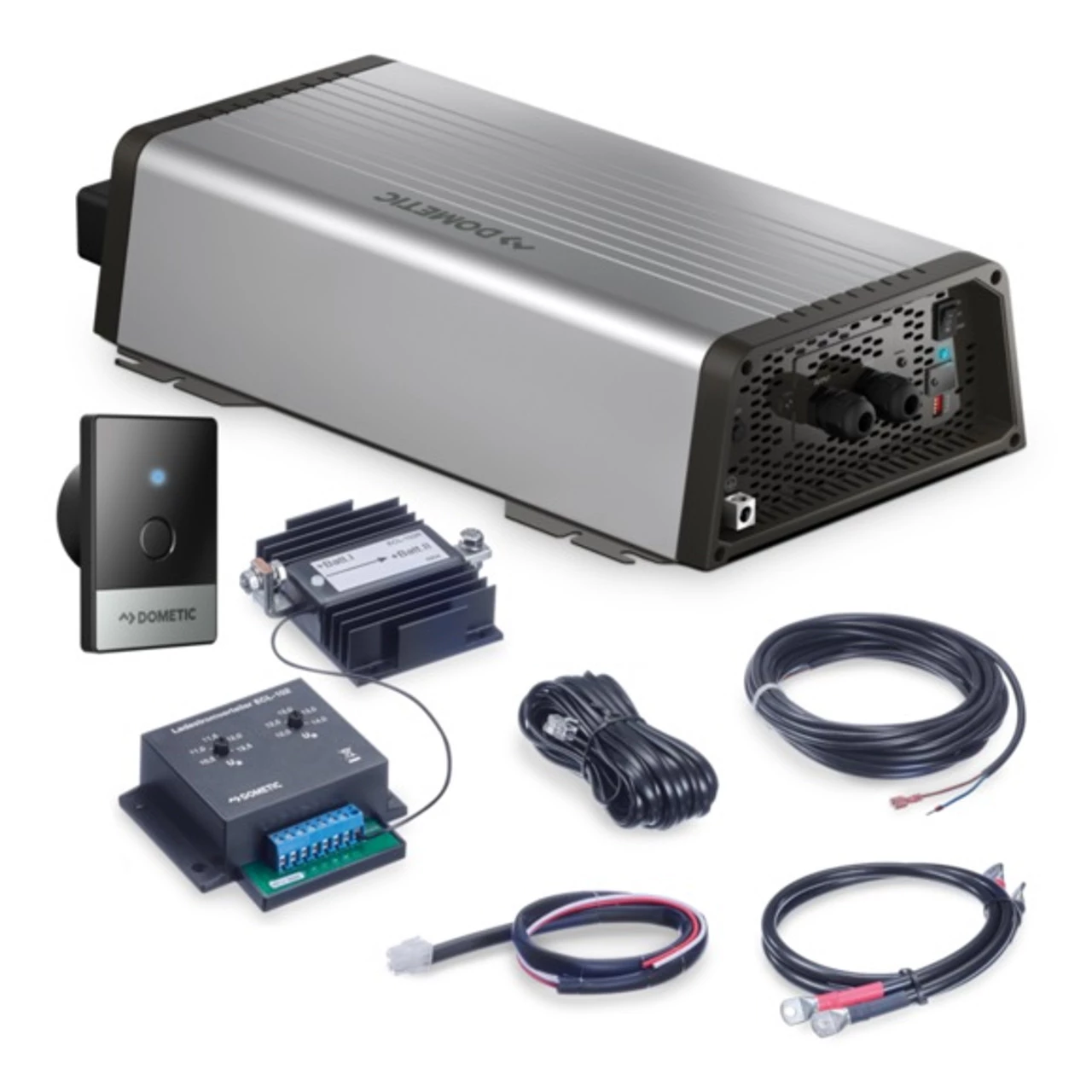

Scope of delivery
The Dometic DSP-T12 consists of:
- 1 x Charging Current Distributor ECL-76 9600000483
- 1 x Inverter with priority circuit PP1002 9600000022
- 1 x Connection Cable 9600000270
- 1 x Red Power Supply Line (35mm sq, 1.5m Length)
- 1 x Black power supply line (35mm sq, 1.5 Meter Length)
- 1 x Sensing Cable For Freshjet/Freshlight Aircons 4441300221
- 1 x Inverter Adapter 9103530084
- 1 x MC9 Remote Control For PP1002 Inverter 9600000091
- 1 x Installation & Operation Manual
Scope of Usage
- The Dometic DSP-T12 is to be used for the mobile or static operation of the listed Dometic Air Conditioners Listed below.
- High energy efficiency prevents the overloading of the vehicle battery.
- Pure sine wave output voltage – suitable for supplying sensitive electric devices.
- Freshjet 1100
- Freshjet 1700
- Freshjet 2200
- Freshjet 3200
- Freshlight 1600
- Freshlight 2200
- Freshwell 3000
