Truma Aventa Compact Caravan, Motorhome and Campervan Air Conditioning Unit

Compact Version of the Truma Aventa air conditioner – with heating and cooling

This roof mounted air conditioning unit has a 3 speed cooling only function, as well as powerful heating options – the ideal way to keep your Caravan, campervan or motorhome, efficient and cool while drying the circulated air to ensure you stay in a pleasant environment. This compact version is lightweight yet powerful, with Truma’s engineers opting for an advanced expanded polypropylene housing to save weight.

Versatile cooling

This compact design can fit alongside other rooftop accessories, such as solar panels, rooflights, roofboxes and more. You can also adjust the air outlet openings to direct heating or cooling where you need it most. Compressor noise is also reduced to a minimum thanks to noise suppression techniques used in the design.

iNet Ready

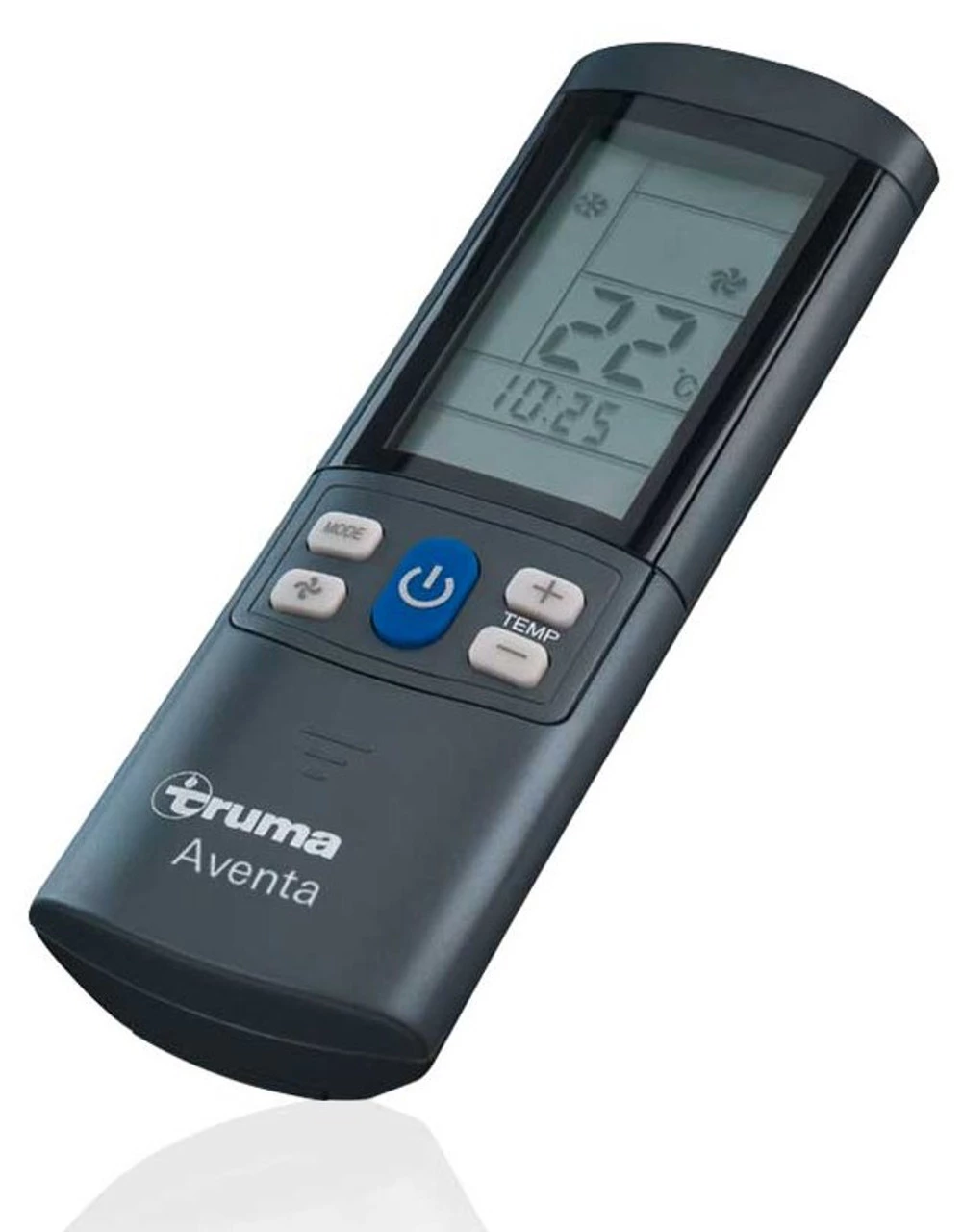

Operate and monitor your Aventa Compact using the iNet system via Bluetooth with the Truma app for unprecedented ease and comfort. Thanks to this functionality, the Aventa Compact can be controlled via a digital Truma CP plus control panel, as well as with your smartphone, when used with an iNet control box.

Truma Aventa Compact features:

• Powerful heating and cooling
• Lightweight design
• Low-profile – both inside and outside
• iNet ready – can be controlled via control panel and app when used with iNet system
• Adjustable vents

Technical Specifications:

Volumetric air flow:

max. 370 m³/h

Colour:

Grey or Cream

Cooling Power:

1700 Watts

Current consumption during cooling:

2.8 Amps

Start-up current:

20 A (150ms)

Deployment range:

+16°C to +40°C

Maximum incline during operation:

8%

Power supply:

230v

Weight:

28 Kg

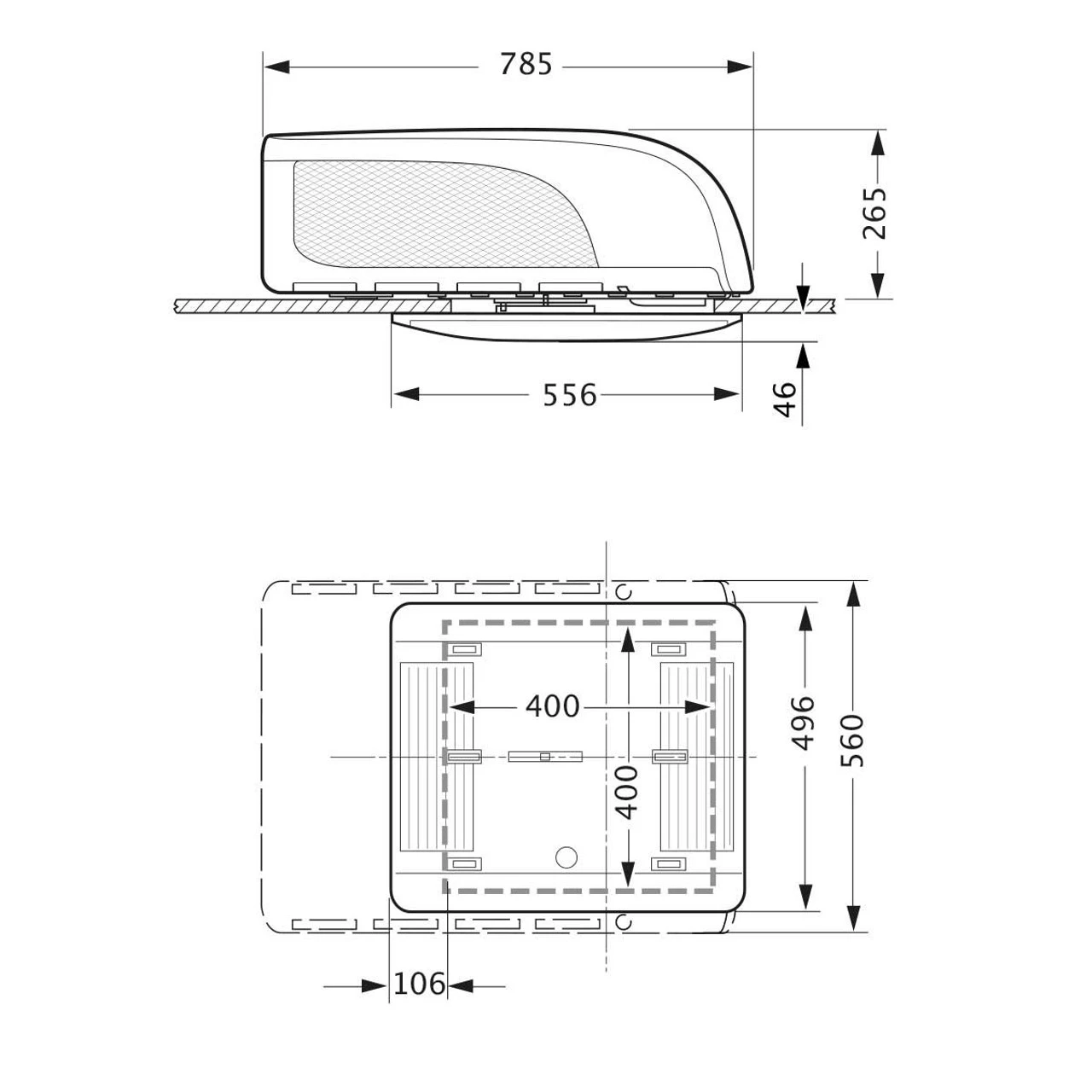

Outer dimensions (L x W x H):

785 x 560 x 265 mm

Inner dimensions (L x W x H):

556 x 496 x 46 mm

Roof cut-out (L x W):

380 x 350 mm / 400 x 400 mm
