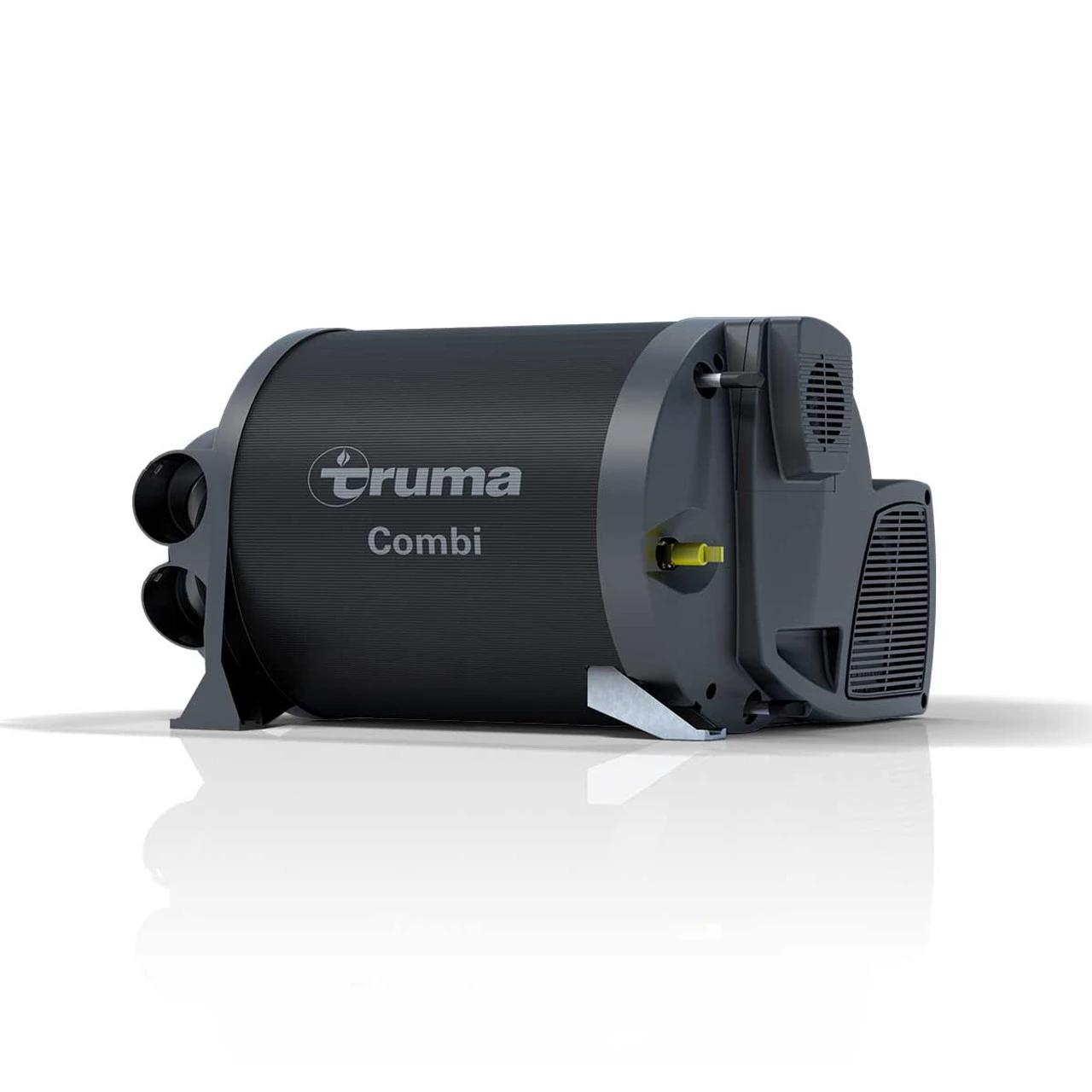

Truma Combi 2E 4E 6E Water Boiler and Space Heater

Truma complete kit 2 for campervan and motorhome

The Truma Combi is a popular choice for heating both water and living space in your campervan, motorhome or caravan. The Combi 2E, 4E and 6E are energy efficient, quiet in operation and incredibly compact and lightweight for the performance it offers. The Truma complete kit 2 includes all the items needed for installation including a digital wall-mounted control panel which is iNet ready*. The Truma 2E, 4E and 6E feature an integrated 10 litre stainless steel water tank. Suitable for all seasons, it allows for independent heating of hot water in summer mode as well as both hot water and warm air in winter mode. Able to operate on either 230V electric mains voltage or on LPG, the Combi provides hot water, and a warm campervan, motorhome, or caravan, whether on a camping site, or in the wild. You can even use both electric and gas energy sources in unison for rapid heating times.

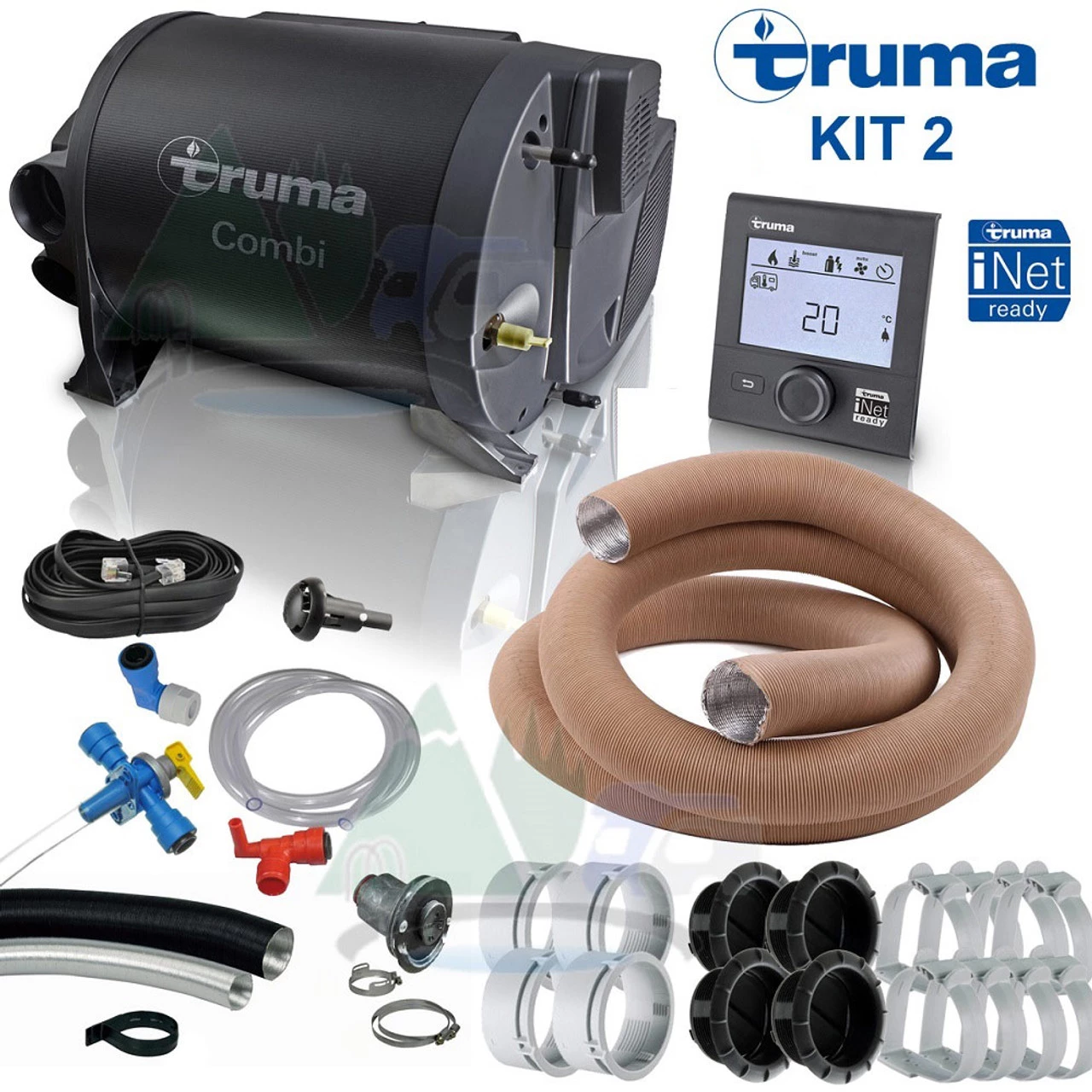

The Truma Combi complete kit 2 contains:

• Truma Combi LPG gas and 230V electric unit

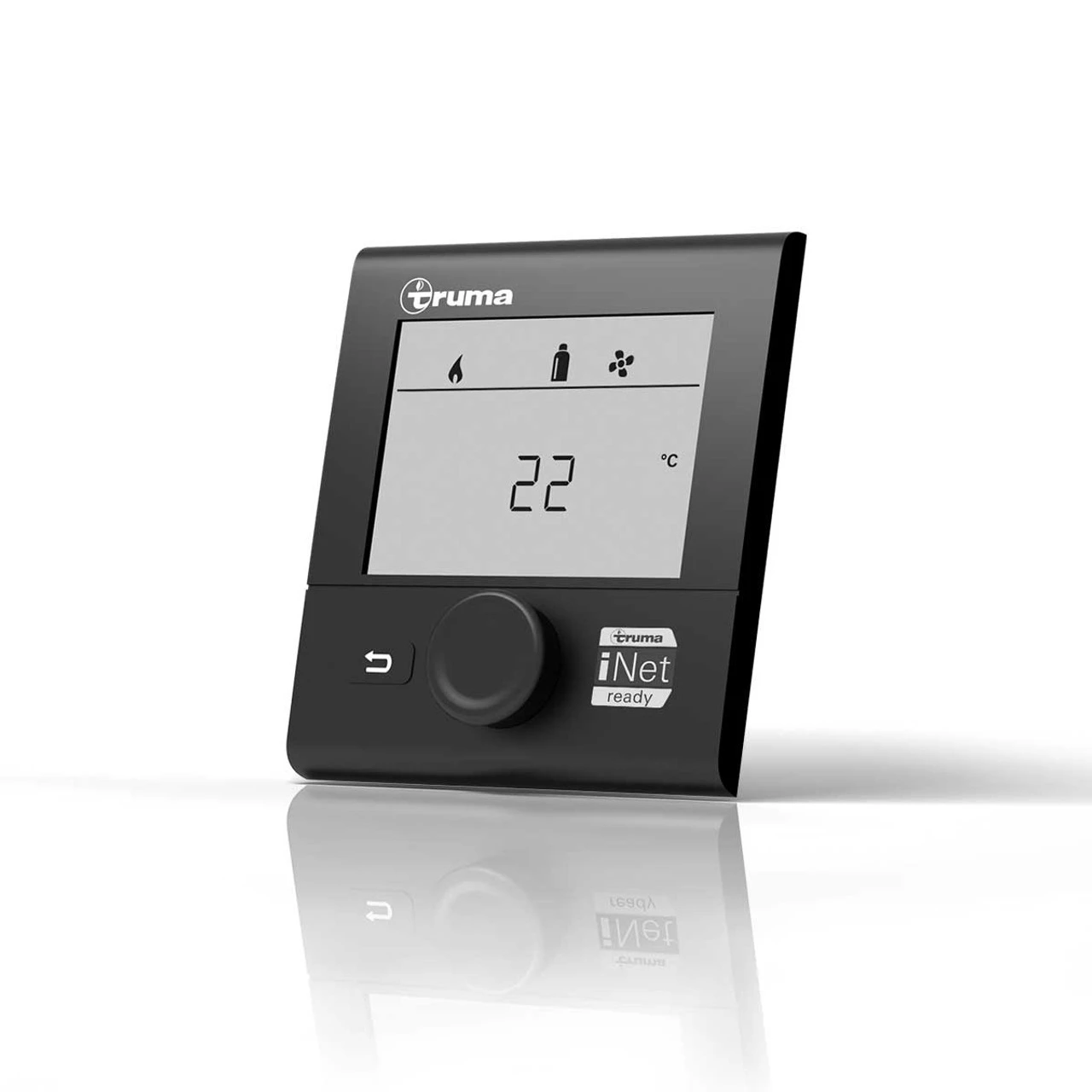

• Truma CP Plus digital wall mounted control panel
• John Guest connection kit
• 10m of 65mm heater ducting pipe
• Truma cowl cover – note – this will come in black only (except for 2E – white cowl)
• 8 x Truma heating clips
• 4 x Truma blown air heating nut
• 4 x black Truma end outlets with throttle

Truma Combi Technical Specification:

• Heater model: Truma Combi 2E
• Dimensions (L x W x H): 510 x 450 x 300 mm
• Installation dimensions (L x W x H): 540 x 500 x 350mm**
• Weight (when empty of water): 15.1kg
• Heating time (from 15°C to 60°C) (Water only): Approx. 20min.
• Heating time (from 15°C to 60°C) (Heater + Water): Approx. 80min.
• Fuel consumption (Gas): 130 g/h
• Water capacity: 10 litres
• Air flow rate: Max. 287 m3/h
• Power consumption (at 230V): 3.9A / 7.8A
• Power consumption (at 12V): Heating up boiler 0.2A up to temporary max. of 5.6A (average approx. 1.1A)
• Water pressure: MAX 2.8 Bar

Truma 2E:

• Rated thermal output (Electric): 980 W / 1960 W
• Rated thermal output (Gas): max. 1950 W
• Rated thermal output (Electric & Gas Combined): 3900 W

Truma 4E:

• Rated thermal output (Electric): 900/1800W
• Rated thermal output (Gas): 2000/4000W,
• Rated thermal output (Electric & Gas Combined): 3800W

Truma 6E:

• Rated thermal output (Gas): 2000/4000/6000W
• Rated thermal output (Electric): 900/1800W
• Rated thermal output (Electric & Gas Combined): 5800W
• Fuel consumption (Gas): 160–460 g/h



* To use the Truma iNet system with your Combi 2E, 4E and 6E you will need a Truma iNet controller available here.

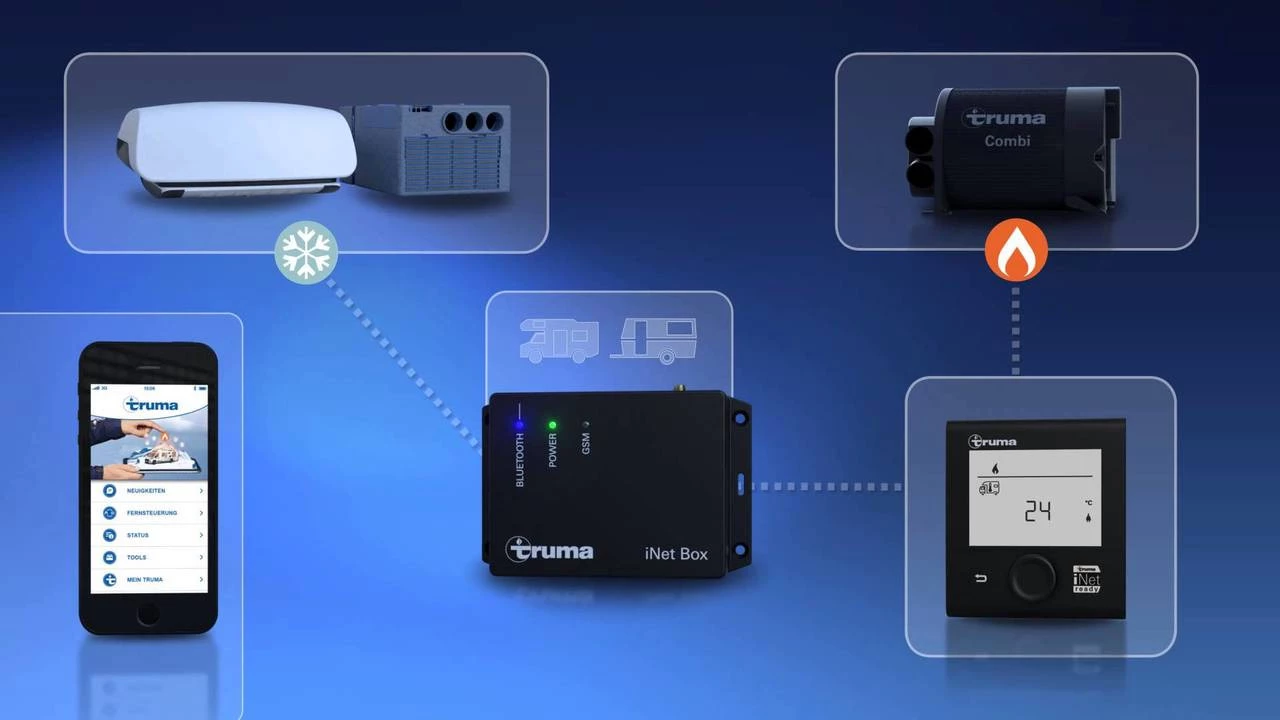

With the addition of a Truma iNet system you can conveniently control the Combi from your mobile phone using Bluetooth via an app. Additionally, if you have a Truma air-conditioning unit installed, the control panel can automatically co-ordinate the heater and air conditioning unit to ensure your living space maintains a comfortable and controlled environment.

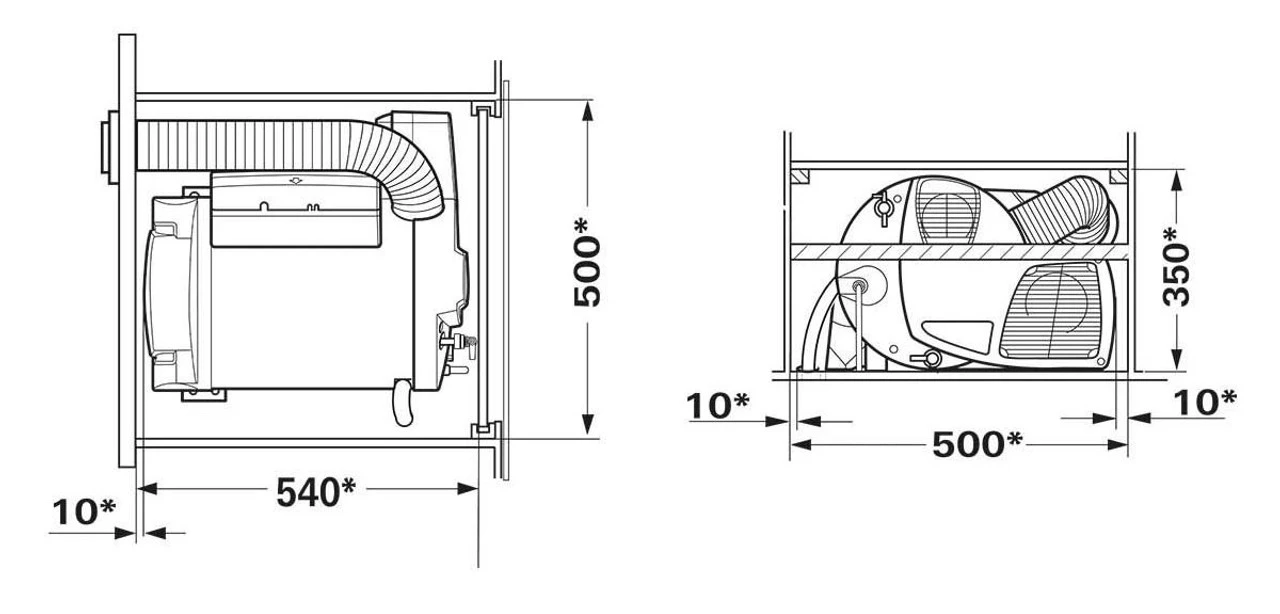

Truma Combi Dimensions:

 **Please note in addition to the installation dimensions, extra space must be provided as appropriate for the gas and water connections as well as the drain valve.

Truma Combi Installation Guide and User Guide
