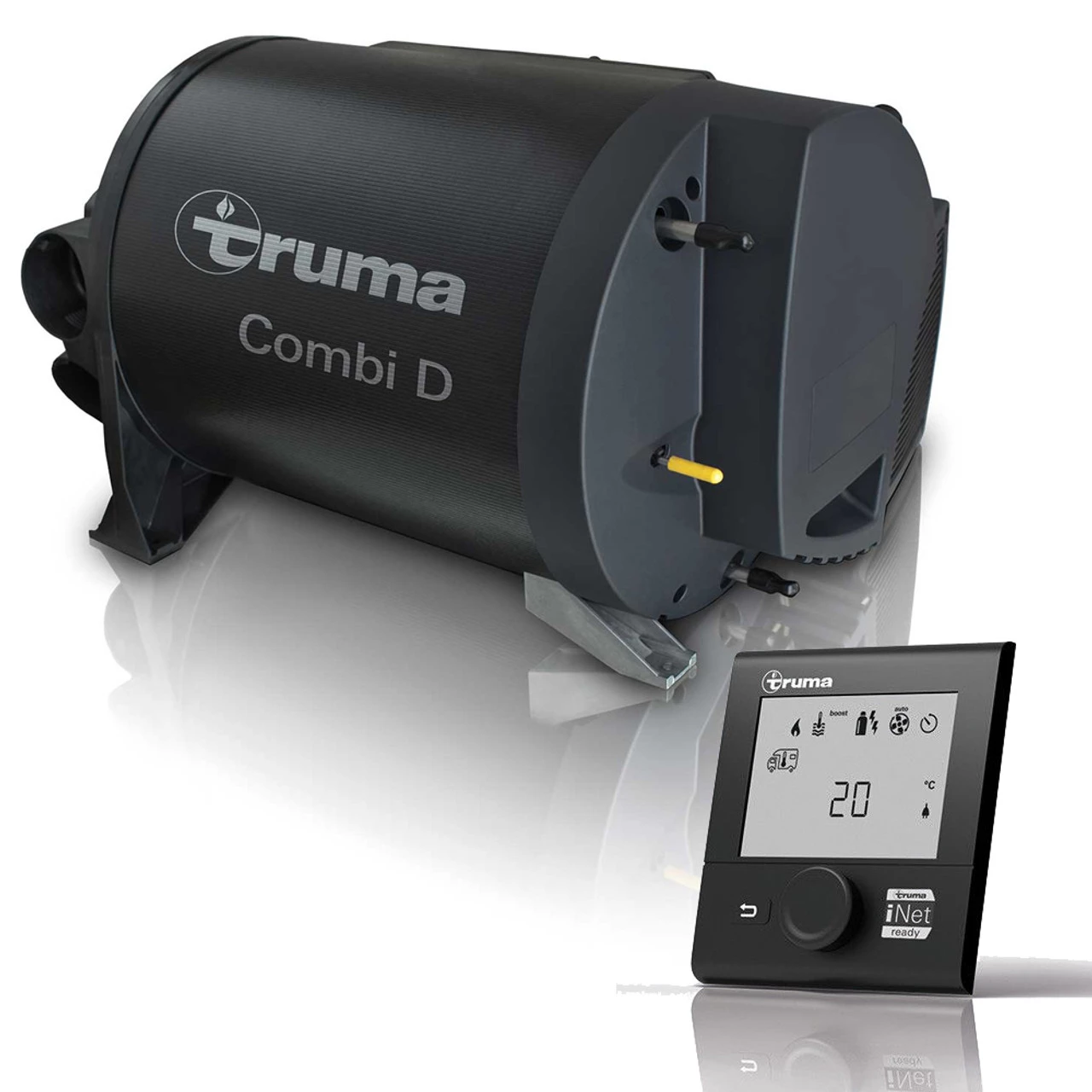

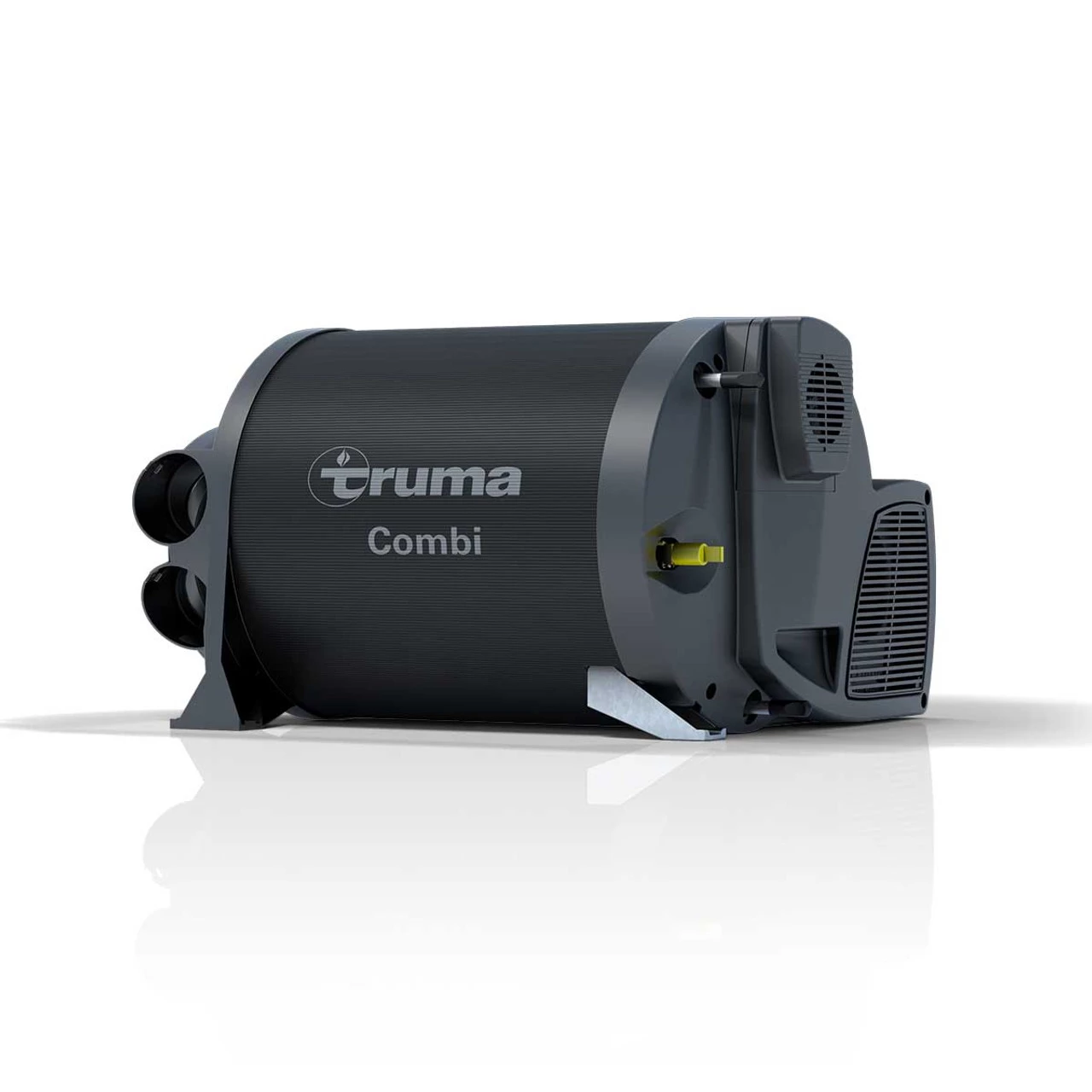

Truma Combi D6E Diesel Water and Air Space Heater
Complete Kit for your Motorhome Campervan Caravan
The Truma Combi D6E Diesel air space and water heater complete kit includes all the parts you need to install and operate the unit itself. Featuring all the benefits of the standard Truma Combi range but with a diesel heater instead of gas alongside an electric element, the Combi D6E is not only effective but also provides increased availability of fuel more suited to those traveling further afield.
Lightweight and compact
Although the Combi D6E is able to operate as both a hot water boiler and space heater, it is relatively small and lightweight. With an inbuilt 10 litre hot water storage tank, the Truma D6E is able to provide enough hot water for everyday tasks as well as heating your living space.
Flexibility to suit your needs
The Combi D6E has 4x heated air outlets allowing for effective heating of your living space. With its digital Truma CP Plus control panel the Combi D6E also allows you complete control over function at any moment, giving you easily adjustable options between hot air, hot water or even having both at once.
230V mains electric heater
The Combi D6E is able to operate on 230V mains in addition to the diesel heater. This not only allows you to heat water and living space air using diesel, but alternatively you can use the electric element when hook-up is available or diesel is unavailable, and you can even use both diesel and electric together for increased performance and efficiency.

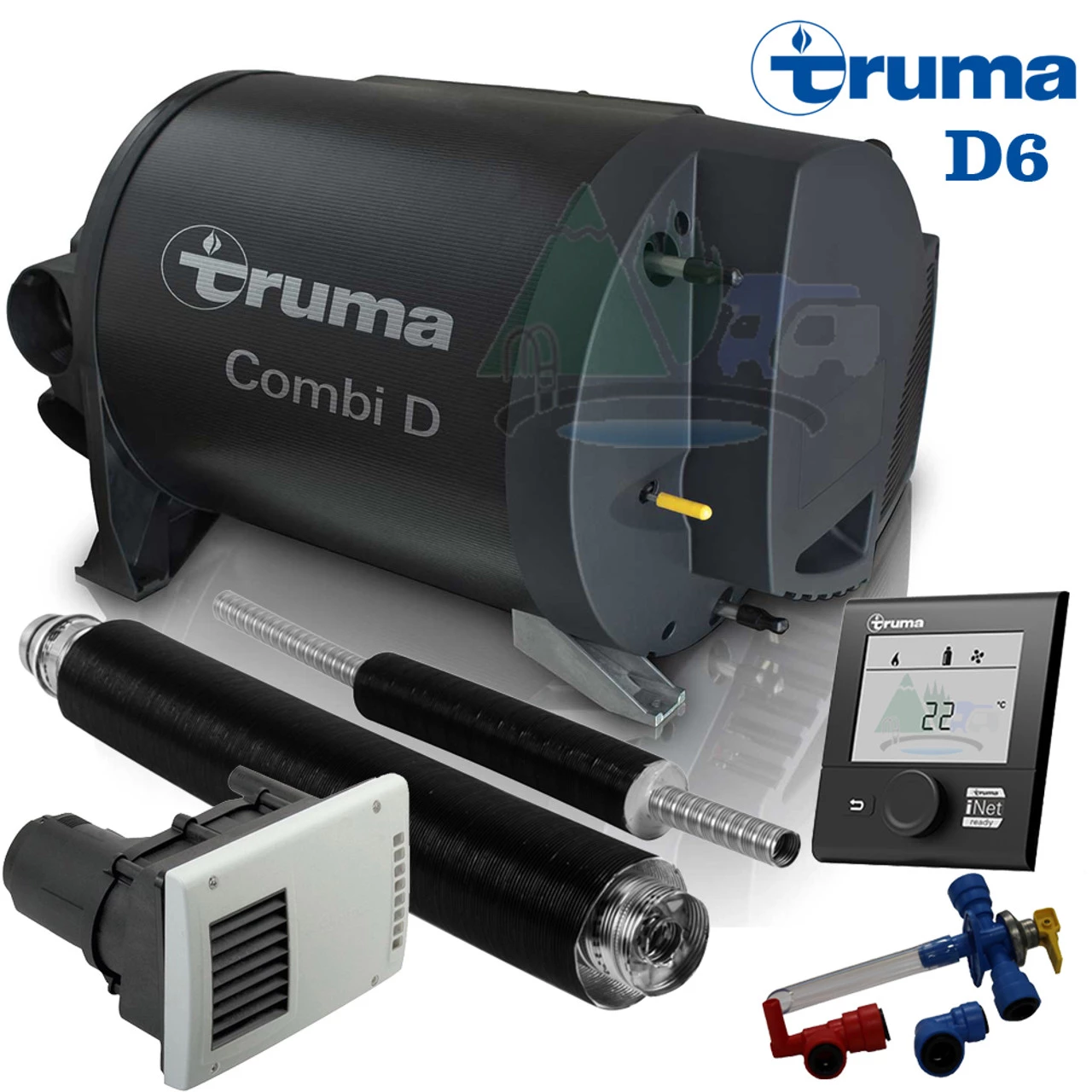

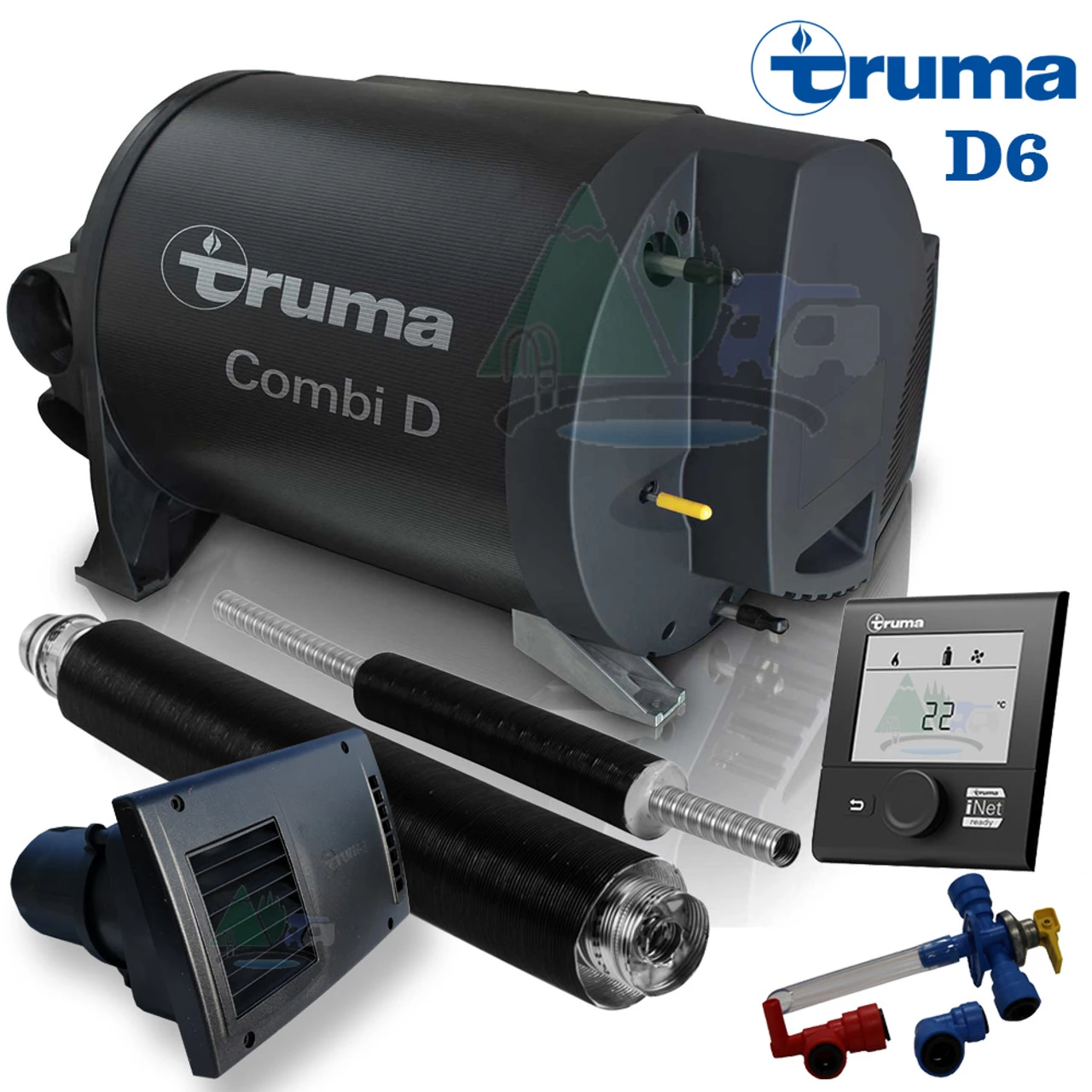

The Truma Combi D6E complete kit includes:
- Truma Combi D6E diesel and electric heater unit
- Truma CP Plus digital control panel
- John Guest water kit
- 6 metres control panel cable
- Truma Combi diesel exhaust kit (white)
- Japan Solderless Terminal electrical ends
- Truma installation and operation instructions
New installations will require appropriate diesel fuel lines and ducting.
Truma CP Plus digital control panel – iNet ready
The Combi D6E complete kit from Truma includes the innovative CP Plus digital control panel which is iNet ready*. The Truma iNet system allows convenient control of your Combi D6E from your tablet or mobile phone via an app. In addition, if you have a Truma air conditioning unit, the control panel can automatically co-ordinate the heater and air conditioning to ensure your living space maintains a comfortable environment.
* To use the Truma iNet system with your Combi D6E you will need a Truma iNet controller available here.
What else is required for new Combi D6E installations?
Please note that ducting, exhaust pipes, the bracket mounting for the diesel pump and wall cowl vents are NOT included with the Truma Combi D6. For a new installation you will require appropriate ducting as well diesel fuel lines etc. It also requires a Truma Metering pump – Truma part number 34020-69600.
Click here to purchase ducting
Truma Combi D6 / D6E Heater Technical Specifications
|Dimensions (L x W x H)||
525 x 450 x 300 mm
|Installation dimensions (L x W x H)||
540 x 500 x 350mm*
|Unit Weight (without water)||
|Heating time (from 15°C to 60°C) (Water only)||
|Heating time (from 15°C to 60°C) (Heater + Water)||
|Rated thermal output in Watts (Diesel)||
|Rated thermal output in Watts (Electric)||
|Rated thermal output in Watts (Diesel & Electric Comb.)||
220 – 630ml/h
|Air flow rate||
|Power consumption (at 230V)||
3.9A / 7.8A
|Power consumption (at 12V)||
Heating up boiler 1.8A up to temp max. of 4.0A
Max. 2.8 Bar
